Rasmussen 15" - 30" Double-Face Vanisher Vented Burner

Rasmussen 15" - 30" Double-Face Vanisher Vented Burner
Rasmussen Double-Face Vanisher Vented Burner

Prices: $1485.00 - $1760.00
Select Size
DF-CF-VEI

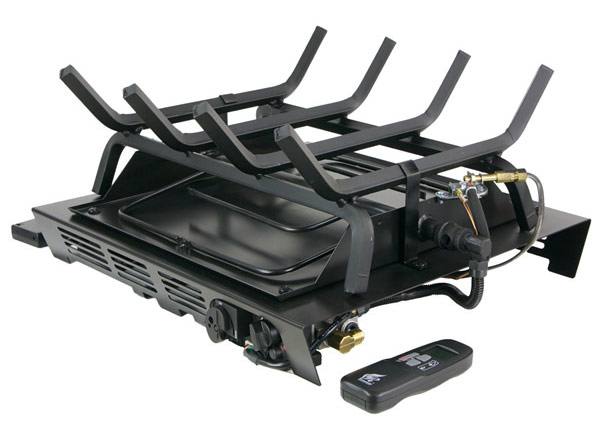

The Rasmussen Double-Face Vanisher Vented Burner is the original see-thru burner pan which can be used with legs for a clean look, or without for a fire pit look. With the Valve Vanisher design it also raises the burner by 2 5/8", but eliminate the big black box that holds the ignition.

Valve Vanisher Features:

Eliminates the off-centering or downsizing of the log set
Heat sensitive controls now located in a cooler zone
Raises burner by 2 5/8" creating a false floor underneath
Factory assembled and tested
This burner can run on natural gas or propane and is available in many sizes to meet your needs. Each system comes complete with:

  • Burner
  • Pan Filler
  • Ember Magic
  • Connector kit
  • Damper clamp
  • Remote Transmitter


Instructions


The Electronic Ignition System is battery powered and uses a variable flame remote transmitter, allowing you to control the flame height of your fire. The Vanisher design has expertly located the valve and control module on the right/left sides of the unit so it is in the path of cool air and does not overheat.

Specification:

  • Material: 16 Gauge Steel
  • Type: Vented
  • Fuel Type: Natural Gas, Propane
  • FP Type: Double Face
  • Style: Logs
  • Ctns.: 1
  • Weight: 39 - 80 lbs.
  • Certification: Z21.60
  • BTU: 50K - 80K
PDF Downloads:
  Item: Size: Dimensions: BTU: Weight:
DF-CF15-VEI 15" 9.25"w x 16"d 50K 39
DF-CF18-VEI 18" 12.25"w x 16"d 60K 48
DF-CF20-VEI 20,21" 14.25"w x 16"d 65K 57
DF-CF24-VEI 24" 18.25"w x 16"d 70K 68
DF-CF30-VEI 27.30" 24.25"w x 16"d 80K 80
